Programmable Display

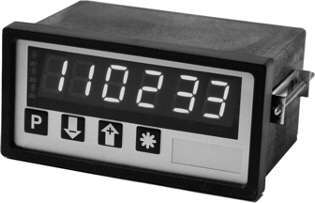

SSI 3025

for Encoders with SSI-Interface

Successor of SSI 3020


Highlights

  • Input Synchronous Serial
    Interface SSI
  • Master/Slave-Mode
  • Up to 1 MHz clock frequency
  • LED-Display, red, 6 deacdes,
    14 mm
  • Display range -99999 .. 999999
  • Free scaling and zero definition
  • DIN Standard Case 96 x 48 mm
  • Small Depth (70 mm)
  • Plug-In screw Terminals
  • Parameters of encoder
    • Binary or gray code
    • Resolution of the encoder
    • Singleturn/Multiturn
    • Direction of rotation
    • Master/Slave-Mode
  • SSI Signal Inputs
    • Data input, receiver RS 422/485
    • Clock output, driver RS 422/485
    • Clock input, receiver RS 422/485
  • Software Functions
    • Encoder adjustments
    • Adjustable for encoder with 9 - 32 bits
    • Bit programming for fir-tree data format
    • Scaling factor
    • Zero point adjustment with or without sign
    • Decimal point setting
    • Offset value
  • Power Supply
    • 18 .. 36 V DC, isolated
  SSI-Logo to previous siteto overview siteto next site
SSI 3020
to the offer form
  Download catalogues, data sheets, manuals, in german, english and french Download: PDF-File manual english Download: PDF-File manual german Download: PDF-File catalogue german Download: PDF-File catalogue english Download: PDF-File datasheet german Download: PDF-File datasheet english
