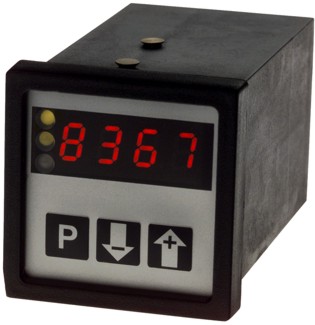

DM 2400

- Should only be used for spare parts requirements -

Highlights

• LED display, red, 4 decades, 8 mm
• Display range -999 .. 9999
• DIN housing 48 x 48 mm
• Voltage, current, thermocouples, Pt100
• User configurable
• High accuracy
• User-defined linearization
• 2 alarm relay outputs
• Plug-in screw terminal
• Free programmable function keys

Technical Data

Input Ranges

• Voltage ±10 V
• Current ±20 mA
• Current 4 - 20 mA
• Thermocouples type K, J, L, S, T, U, R
• Pt100 2-/4-wire

Software Functions

• Scaling factor
• Adjustable digital filter of 1st order
• Peak and valley detection
• Automatic reset of peak and valley detection
• User-defined linearization up to 10 points
• Display of temperature in °C or °F
• Taring
• Display test
• Display hold
• Setting of alarm points during measurement

Power Supply

• 18 .. 36 V DC isolated
• optional 12 V DC isolated
• optional 5 V DC isolated
