UM 3300
Low-cost digital indicator with 12-bit resolution, freely scalable, user calibration, tare and MIN/MAX memory function, 5–36 VDC, panel cutout 96×48 mm.
Panel Meters
Digital panel meters for display and evaluation of industrial measurands – counters, digital indicators, SSI display units and remote displays, with galvanically isolated power supply and pluggable screw terminals.
Programmable Low-Cost Panel Meters for Current/Voltage Measurement
UM 3301
Like UM 3300, supply voltage 5–36 VDC or 230 VAC.
UM 3023
Low-cost digital indicator with 12-bit resolution, scalable, with tare function and membrane keypad, 24 VDC, panel cutout 96×48 mm.
Low-Cost Panel Meters for Current/Voltage Measurement
UM 2701
Low-cost digital indicator, 3.5-digit, 4000-count resolution, 0.1 % accuracy, panel cutout 72×36 mm.
Programmable Universal Counters/Frequency Meters/Time Meters
CM 3001
Programmable universal counter (up to 4.5 kHz) with AC/DC supply, membrane keypad, data buffering, 2 limit-value contacts, sensor supply, analogue output and interfaces, panel cutout 96×48 mm.
CM 3101
Like CM 3001, but for input frequencies up to 1 MHz.
Programmable Display Units with SSI Interface
SSI 3005
Programmable display unit for encoders with SSI interface, master/slave operation, up to 1 MHz clock frequency, 6-digit LED display, free scaling, panel cutout 96×48 mm.
SSI 3025
Low-cost variant of the SSI 3005 with reduced mounting depth, panel cutout 96×48 mm.
Programmable Digital Indicators for ±10V, ±20mA, Thermocouples, Pt100
DM 3103
Integrating programmable digital indicator, panel cutout 96×48 mm.
DM 3105
Digital indicator for differential measurement with user linearisation, 2 limit-value contacts, analogue output and interfaces, panel cutout 96×48 mm.
DM 3110
Digital indicator for voltage, current, PT100 and thermocouples (K/J/L/S/T/U/R) with user linearisation, 2 limit-value contacts, analogue output and interfaces, panel cutout 96×48 mm.
Programmable Digital Indicator for Strain Gauges (DMS)
DM 3002
Digital indicator for strain gauges (DMS) with stabilised excitation voltage, user linearisation, 2 limit-value contacts, analogue output and interfaces, panel cutout 96×48 mm.
Programmable Digital Indicator for AC Voltage/AC Current
DM 3202
Programmable AC voltage meter with user linearisation, 2 limit-value contacts, analogue output and interfaces, panel cutout 96×48 mm.
Programmable Digital Counters/Speed, Frequency, Time Meters/Hour Meters
CM 2510
Programmable digital counter with galvanically isolated DC supply, data buffering and pluggable screw terminals, panel cutout 48×24 mm.
CM 2510M
Like CM 2510, designed for Mauell mosaic panel systems, panel cutout 48×24 mm.
Instruments with Parallel Interface

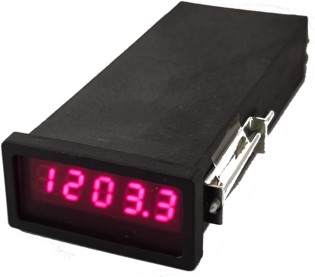

FA 2510
Programmable remote display with parallel input (max. 16 bit), BCD, Gray or binary code, for PLC or absolute encoders, panel cutout 48×24 mm.

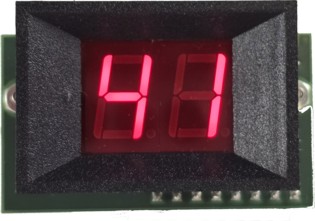

SO 1463
Display for binary input signals with 6 binary inputs and 2-digit red LED display, very compact design.
Programmable Panel Meters for 0-10 V, 0(4)-20 mA
UM 5000
Programmable digital indicator with user linearisation, 2 limit-value contacts and serial output, panel cutout 174×72 mm.
