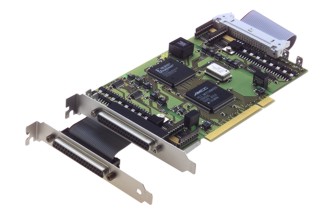

IO 1388

Highlights

• Driver and DLL for Vista / Windows 7/8/10 (32 Bit and 64 Bit)
• 16/32 isolated digital power outputs, 8-30 V, 1 A, short circuit protected
• 16/32 isolated digital inputs, 5 V, 24 V or custom input voltage
• Programmable timer
• Programmable watchdog
• PCI 2.2 compatible

Technical Data

Outputs

• 16 / 32 isolated outputs
• 8 - 30 V each 1 A, short circuit protected

Inputs

• 16 / 32 isolated inputs
• 5 V, 24 V or custom input voltage

Interrupts

• For each input separately programmable to rising and/or falling edge

Timer

• Timing driven recording of inputs
• Interval programmable 1 µs to > 3 seconds

Watchdog

• Outputs will be set to programmable value on system or program crashes
• Watchtime programmable 1 ms to > 65 seconds

Software

• Driver and DLL for Vista / Windows 7/8/10 (32 Bit and 64 Bit)
• Driver and DLL for Windows NT4.0/2000/XP
• Driver and DLL for Windows 9x/ME
• Example program for Delphi
• Example program for VisualBasic
• Example program for VisualC++

Technical Specifications

Inputs	16/32 inputs, optoisolated
– Input voltage	5 V or 24 V, custom specific
– Input resistance	> 10 kOhm
Outputs	16/32 outputs, optoisolated, high-side
– Output current	max. 1 A
– Output voltage	8 - 30 V DC
Connector	1 / 2 37-pin SUB-D female
CE	EMC 2014/30/EU RoHS 2011/65/EU + 2015/863 LVD 2014/35/EU
Operating temperature	0 - 50 °C
Storage temperature	-25 to +85 °C
Dimensions	190 x 107 mm
